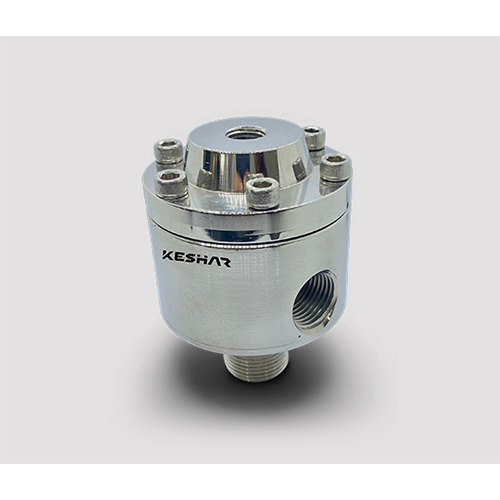

Diaphragm Seal

Pressure Gauge Diaphragm Seals are protective devices used to isolate pressure measuring instruments from corrosive, viscous, high-temperature, or sanitary process media. They consist of a flexible diaphragm welded to a body, which transmits process pressure to the gauge through a fill fluid without allowing the media to directly contact the sensing element. This ensures accurate pressure measurement while protecting the instrument from damage, clogging, or contamination.

Manufactured from high-quality materials such as SS 316, SS 316L, Hastelloy, Monel, or PTFE-lined constructions, diaphragm seals are designed to withstand harsh process conditions. They are available in various designs including threaded, flanged, flush type, and sanitary type, making them suitable for a wide range of industrial and hygienic applications.

Technical Details:

• Product Type: Pressure Gauge Diaphragm Seal
• Material: SS 316 / SS 316L / Hastelloy / Monel / PTFE Lined
• Connection Type: Threaded / Flanged / Sanitary
• Diaphragm Type: Welded / Flush / Extended
• Fill Fluid: Silicone Oil / Glycerin / Fluorinated Fluid
• Pressure Range: Vacuum to High Pressure (application dependent)
• Temperature Range: -40C to 300C (with cooling options for higher)
• Mounting: Direct Mount / Capillary Type
• Standards: ASME / ANSI / DIN
