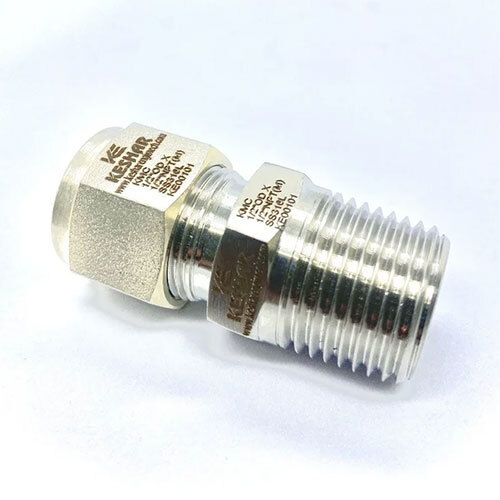

Tube to Male Connector

Instrumentation Male Connector is a precision-engineered fitting designed to connect instrumentation tubing to a male threaded port in high-pressure systems. It is widely used in process and control applications where secure, leak-proof, and vibration-resistant connections are critical. The connector typically features a double ferrule compression mechanism on the tube side, which ensures strong grip and tight sealing, while the male threaded end provides reliable connection to valves, manifolds, or equipment.

Manufactured from high-grade materials such as SS 316 or SS 304, this connector offers excellent resistance to corrosion, pressure, and temperature variations. The internal design ensures smooth flow with minimal pressure drop, maintaining system efficiency. With precise machining and robust construction, the Instrumentation Male Connector is ideal for demanding industrial environments requiring long service life and dependable performance.

Technical Details:

• Product Type: Instrumentation Male Connector
• Material: SS 316 / SS 304 / Brass (optional)
• Connection Type: Tube x Male Thread
• Tube Size (OD): 1/8 to 1
• Thread Type: BSP / NPT / BSPT
• End Connection: Double Ferrule Compression x Male Thread
• Working Pressure: Up to 6000 PSI (depending on size & material)
• Temperature Range: -40C to 400C
• Sealing: Ferrule Grip + Thread Sealant
